The 0th Place: Utilizing Urban Cracks as Experimental Sites
Location:
Rotterdam, The Netherlands
Category:

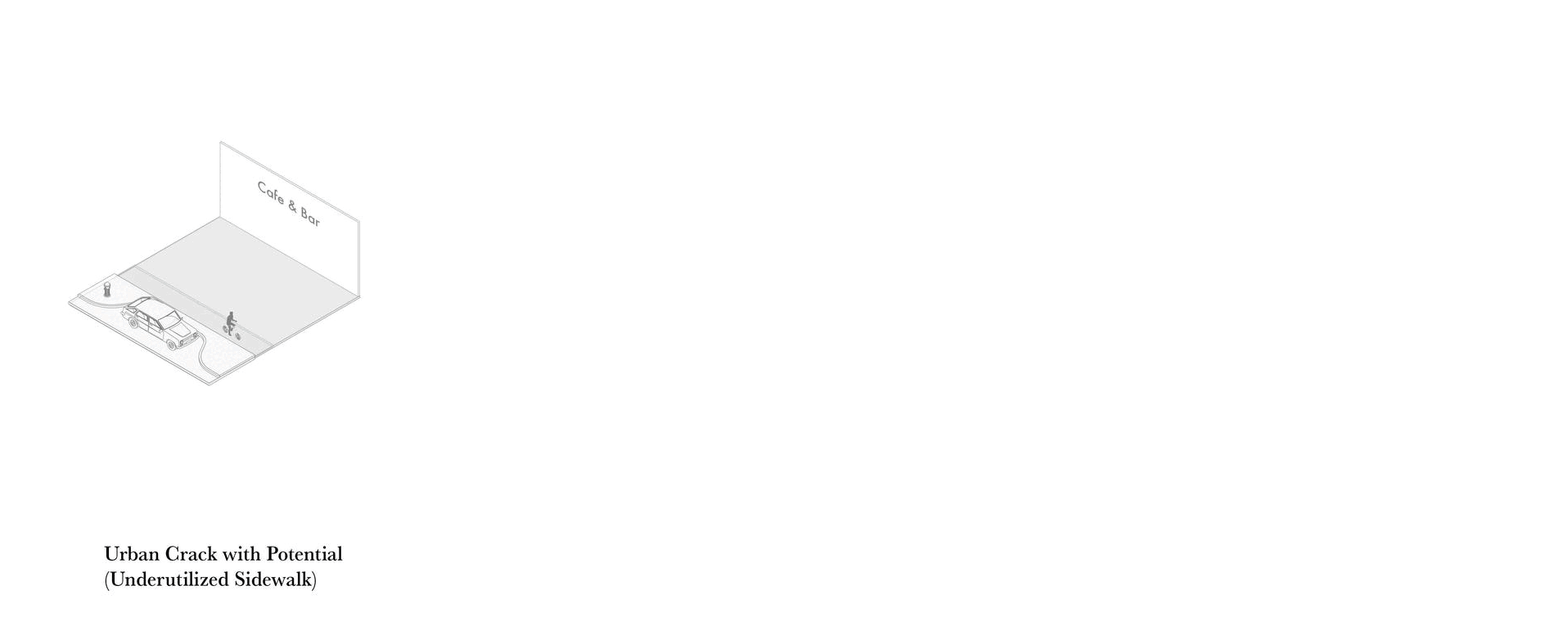

My thesis project – The 0th Place: Utilizing Urban Cracks as Experimental Sites – represents a reinterpretation of urban environments. In contrast to traditional top-down zoning and bottom-up social approaches, this project tries to understand the “in-between” scale. This scale includes spaces that do not fit neatly into typical urban design categories like neighborhoods or architectural plots. These spaces, often referred to as “left-over” (urban cracks), offer untapped potential for exploration. This project positions itself at the intersection of urbanism and architecture, focusing on these overlooked spaces.

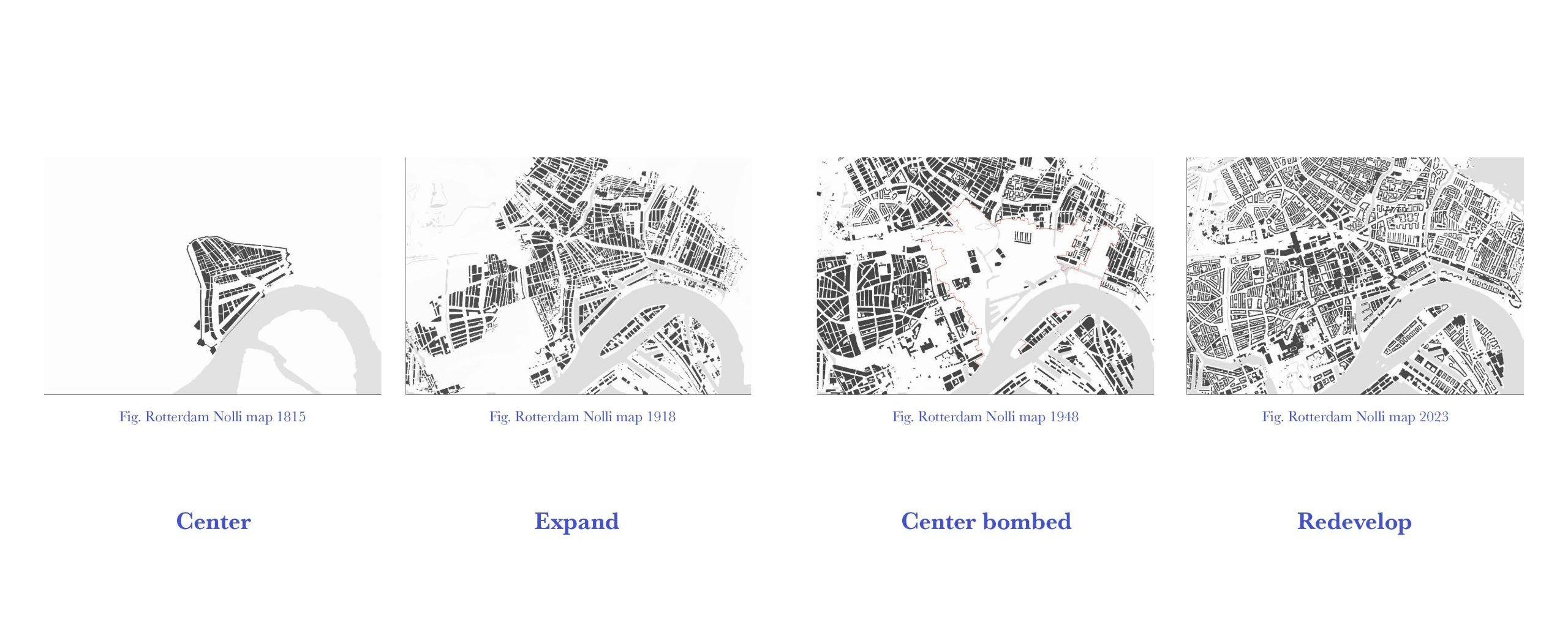

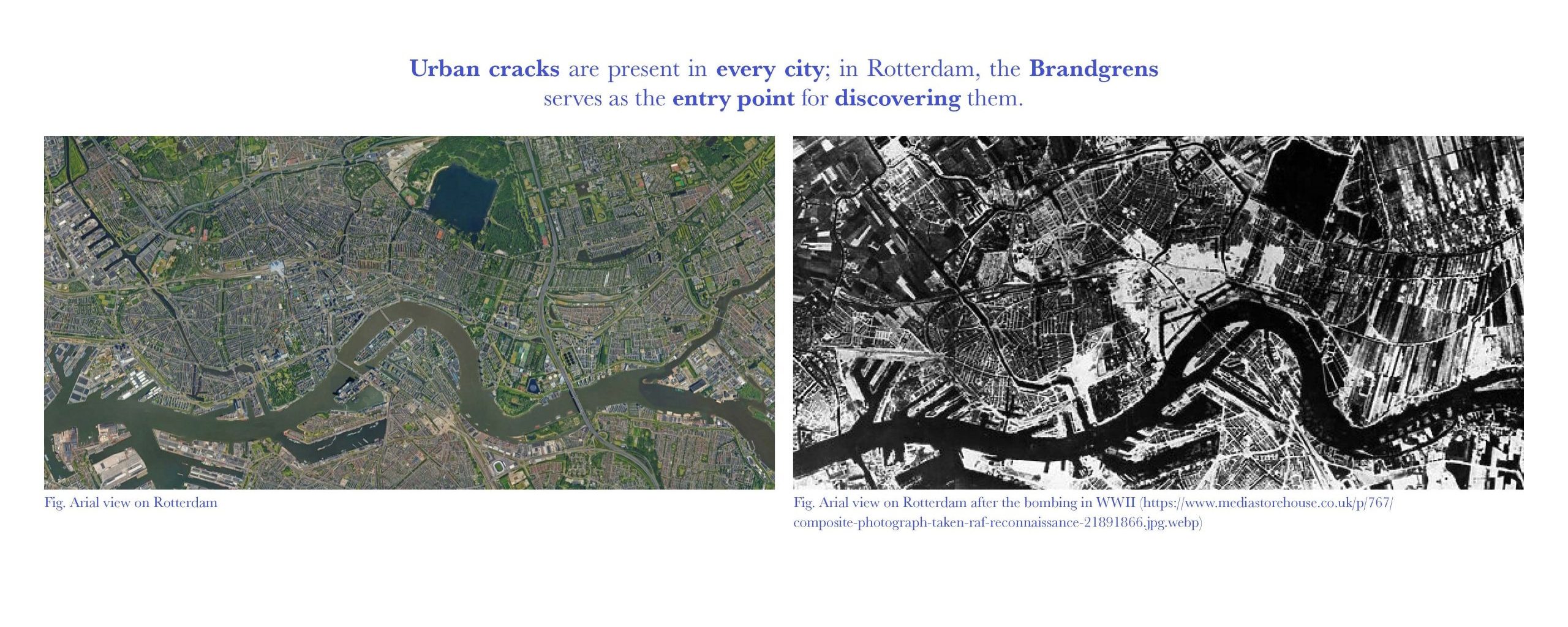

Rotterdam: From Pre-War Identity to Post-War Transformation

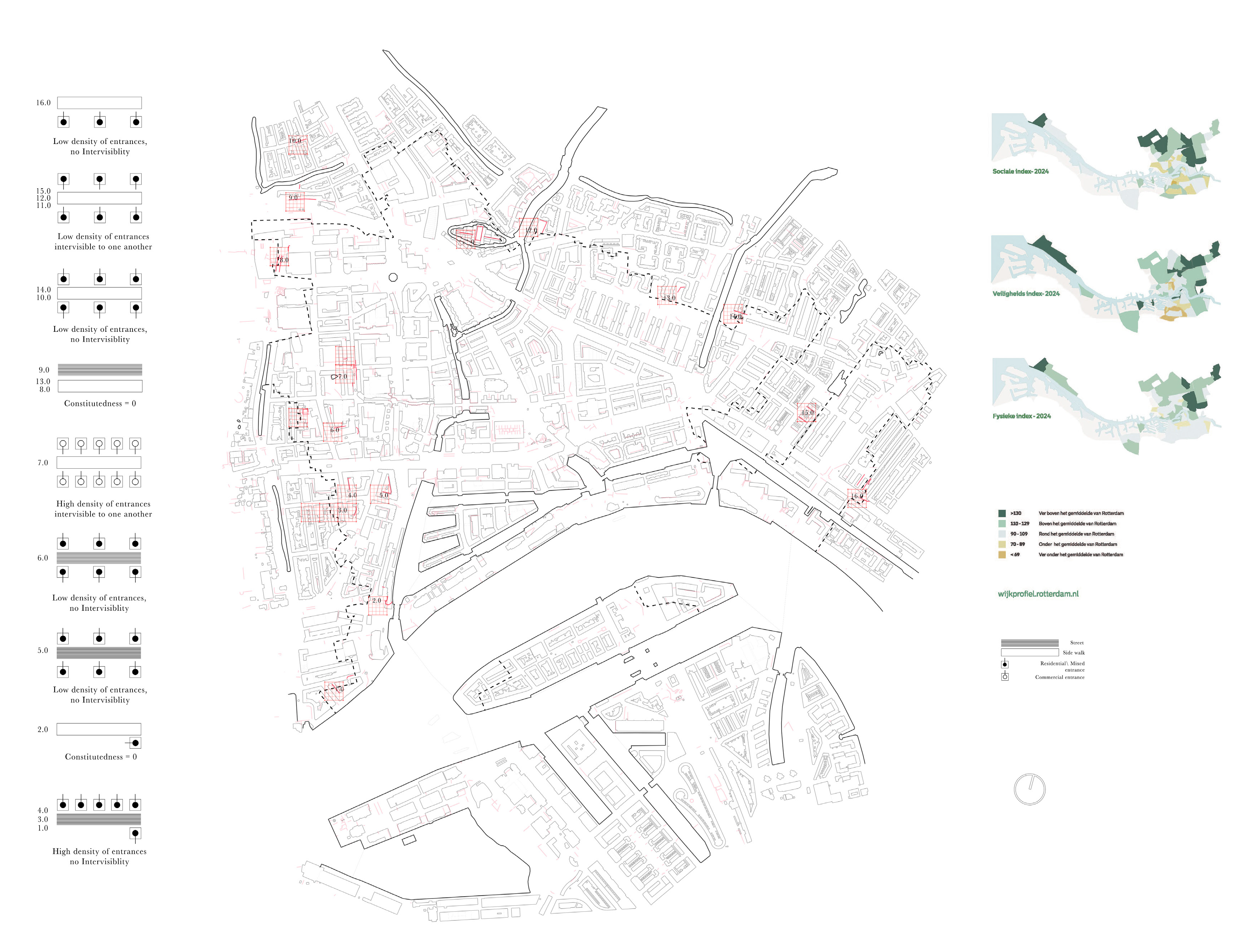

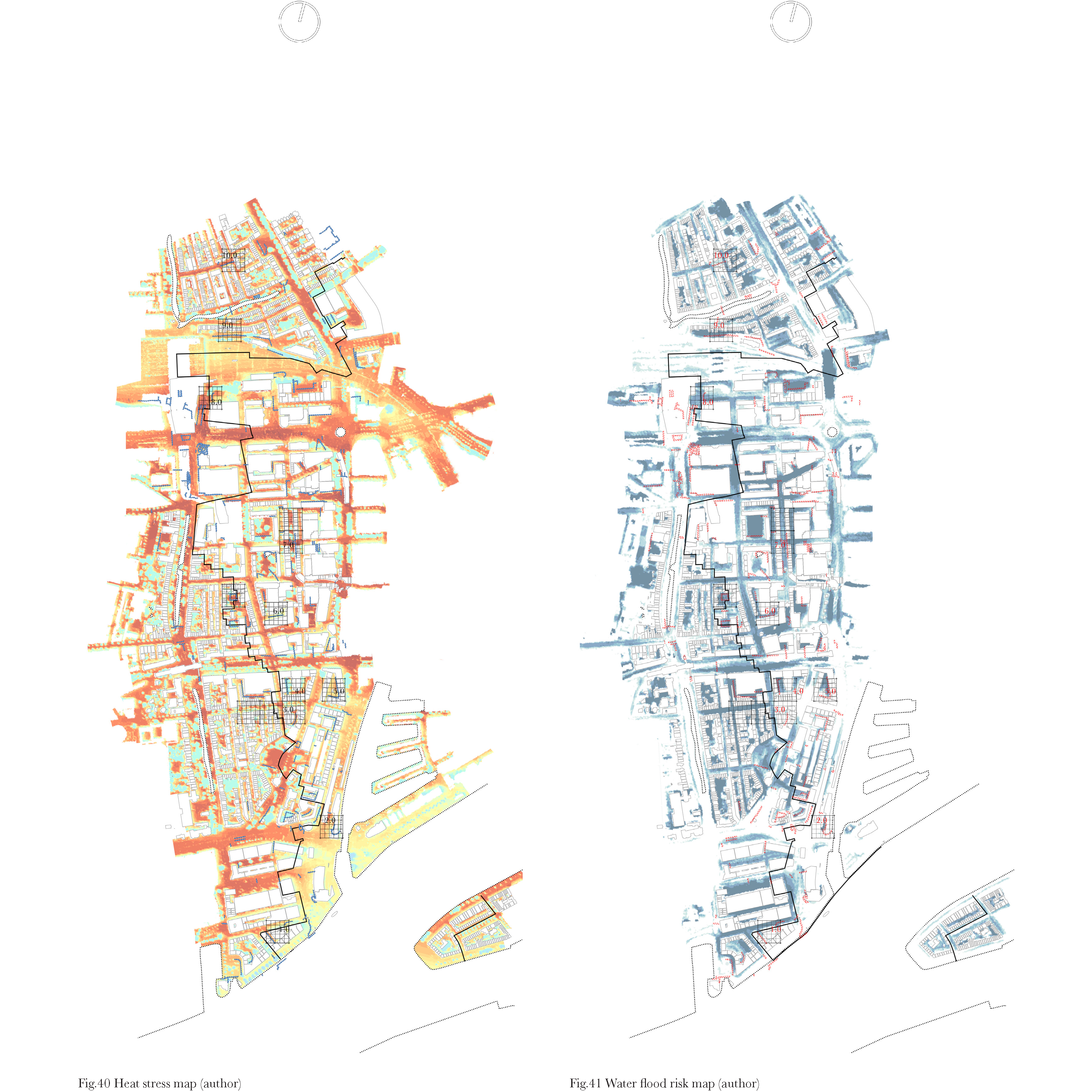

Constitutedness, physical condition, safety, and social map.

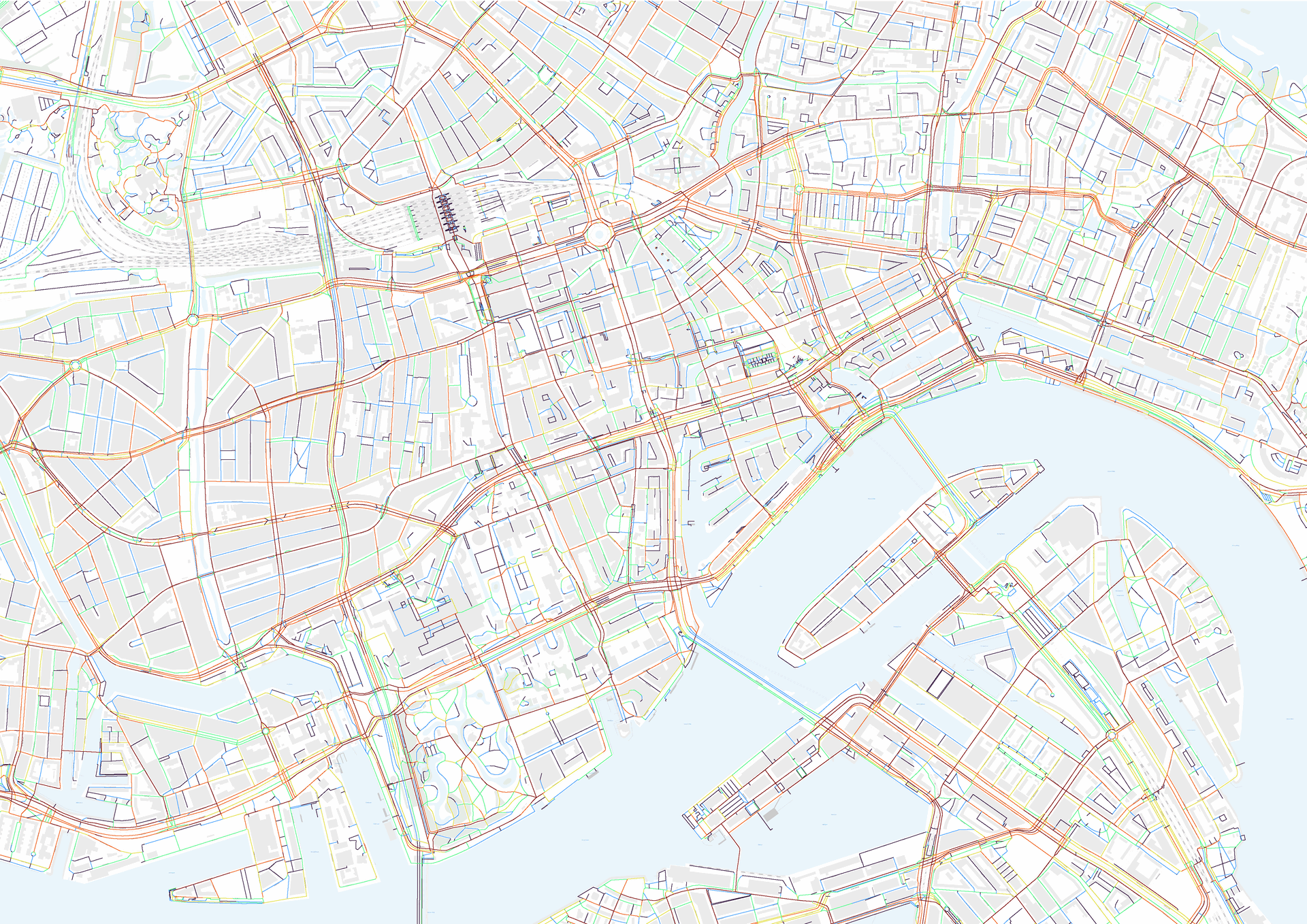

Quantitative Analysis: Identifying Neglected Urban Spaces through Space Syntax

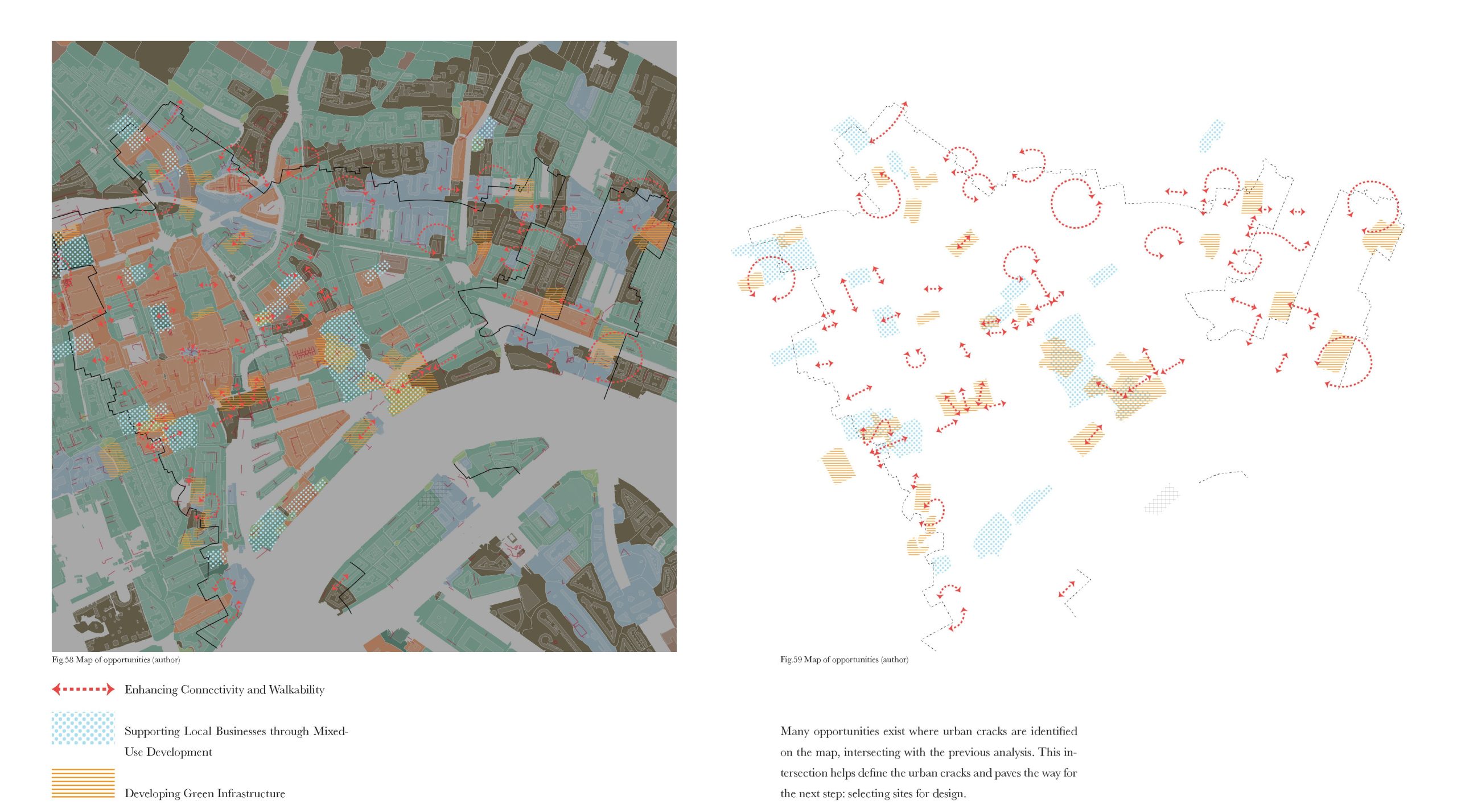

Mixed Approach: Density-Based Analysis for Urban Typology and Opportunity Mapping

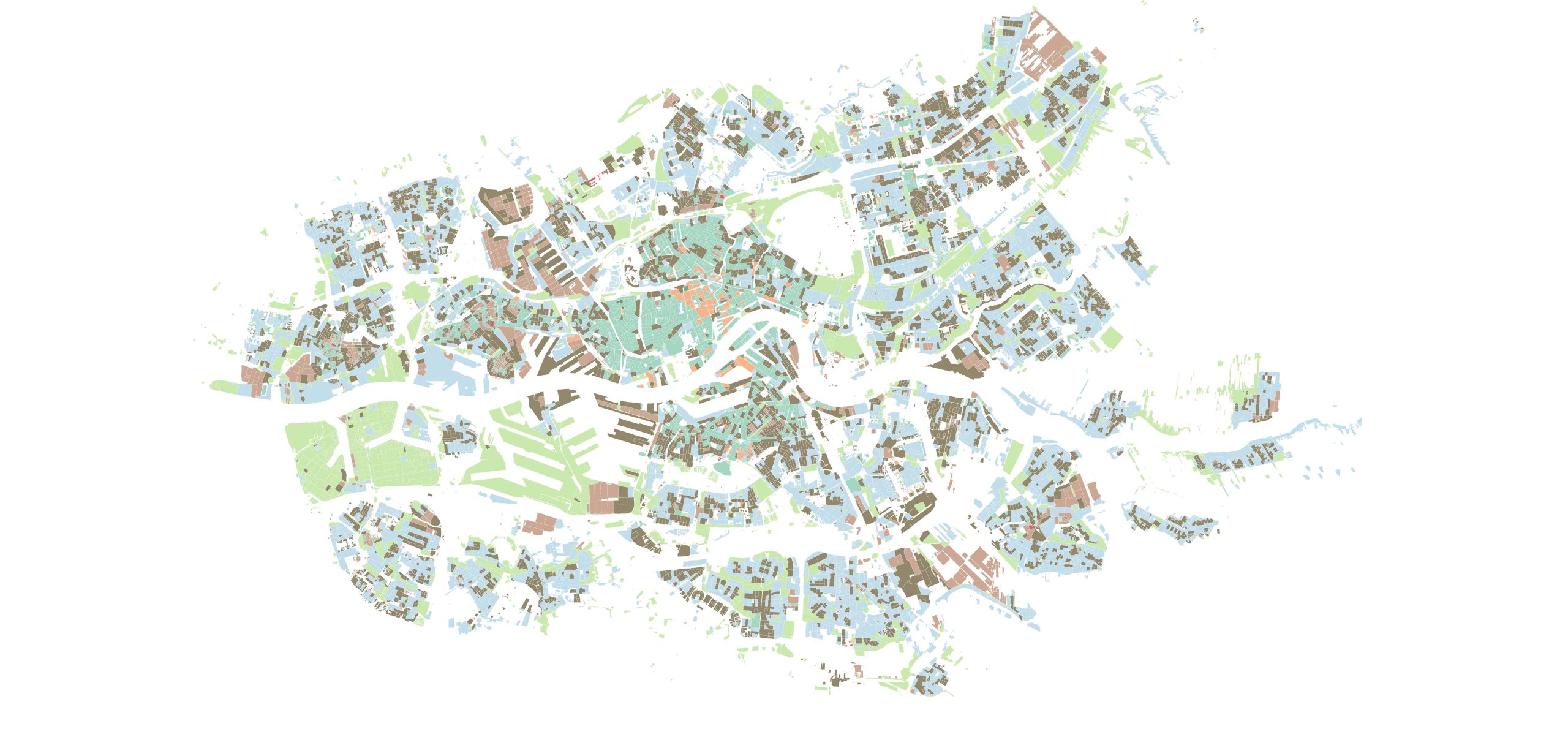

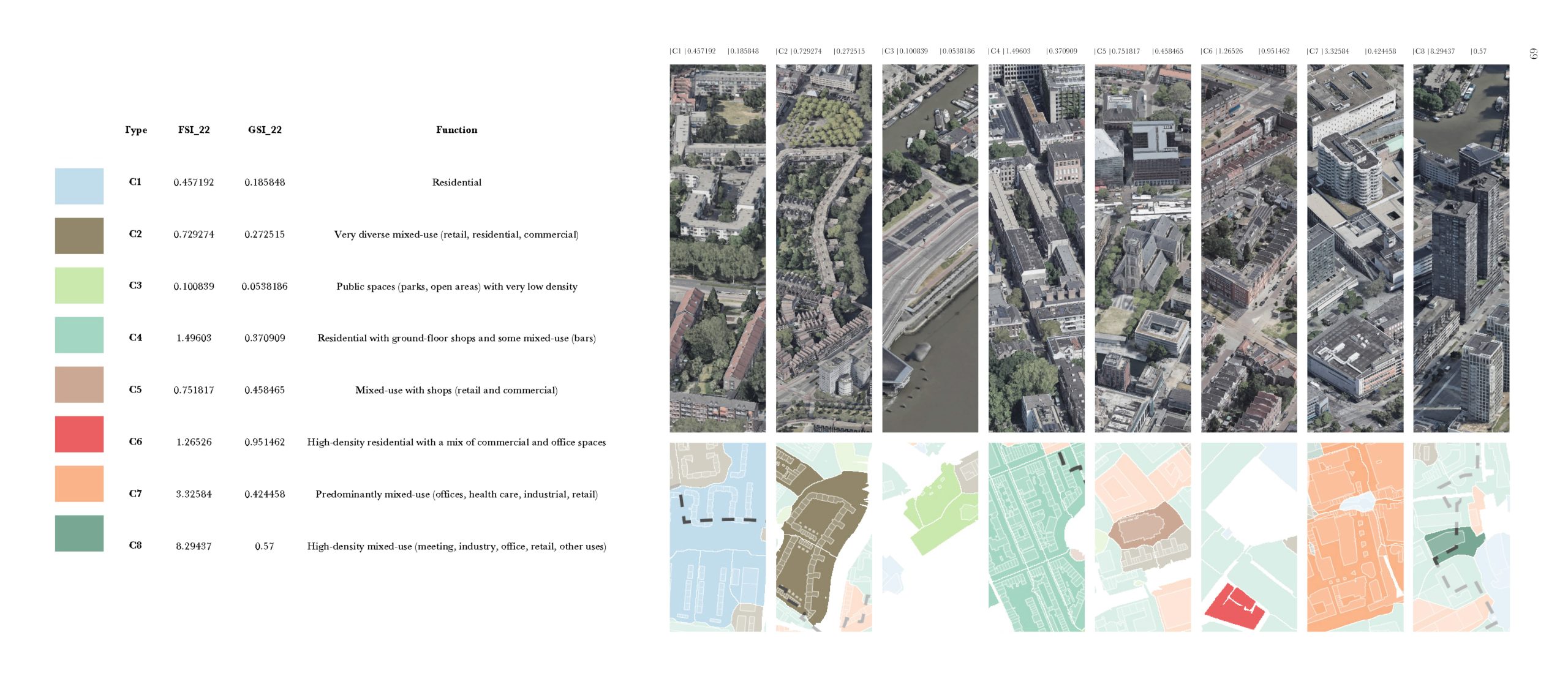

Urban Configurations: Density and Function-Based Typology
The process analyzed urban configurations, aligned them with challenges and trends, and identified 28 interdependencies across C1 to C8, addressing issues like social inclusivity, economic growth, and green infrastructure.

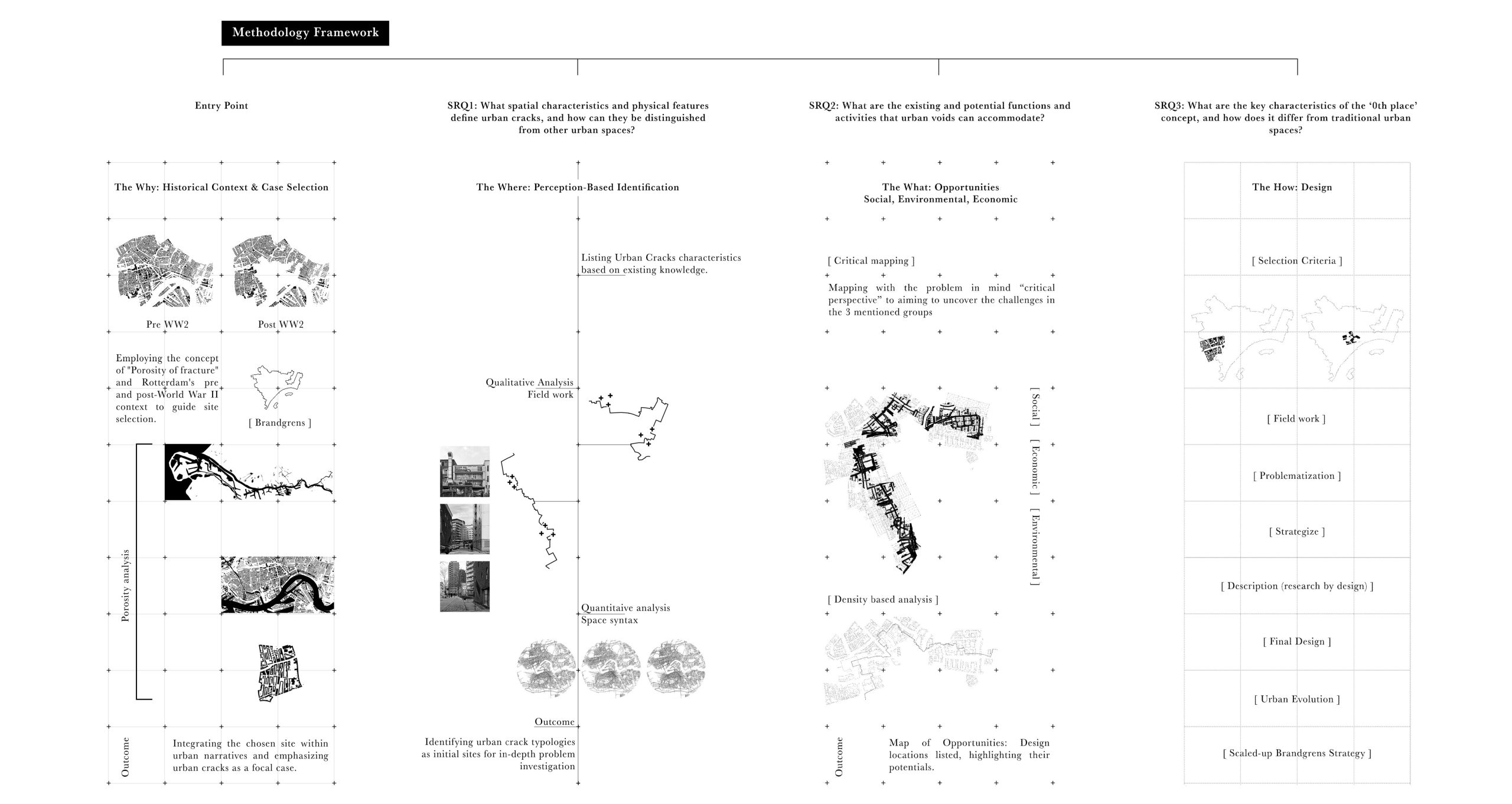

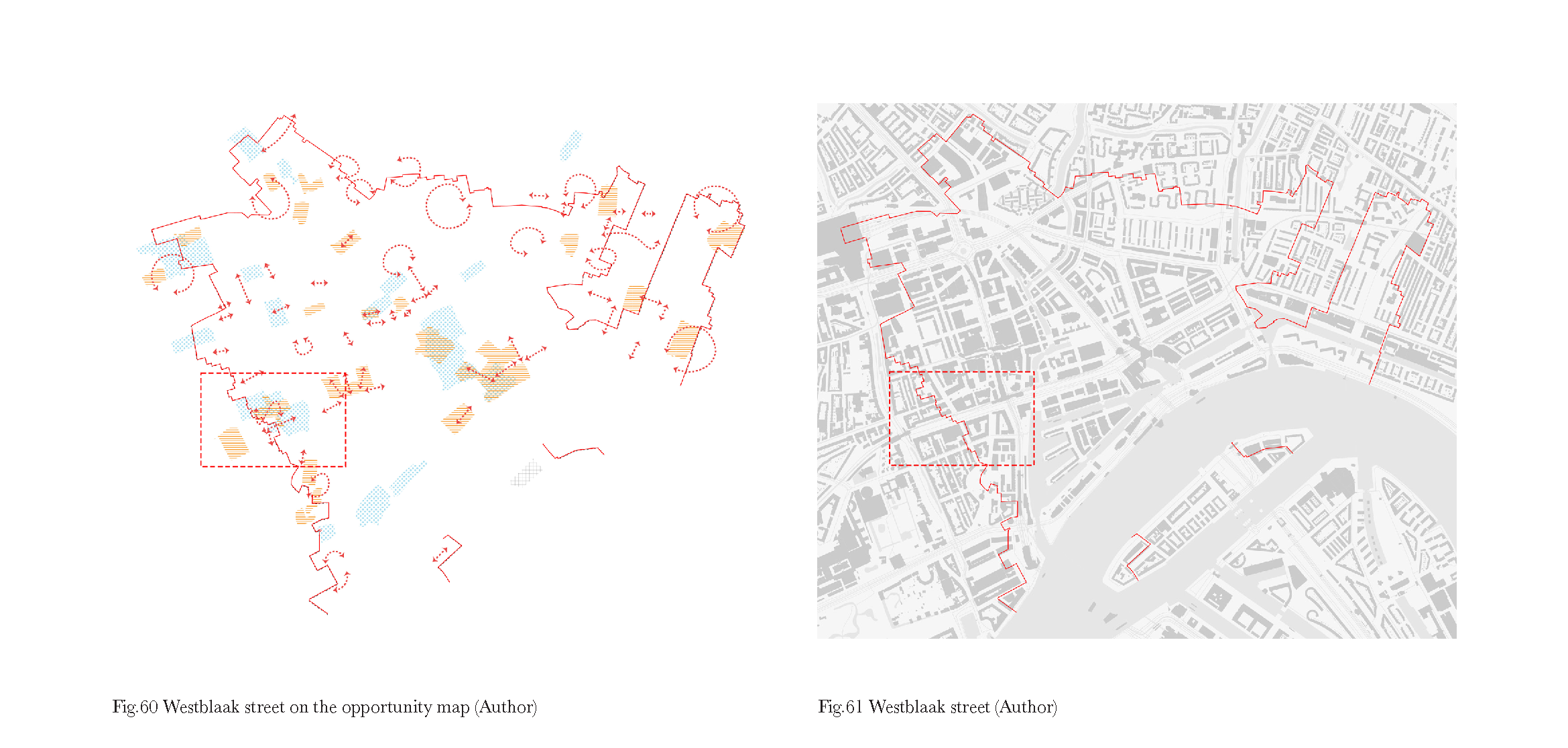

Selection Criteria: Identifying transition zones, social/economic disparities, connectivity issues, and development potential (Step 1 of 8-Step Design Framework)

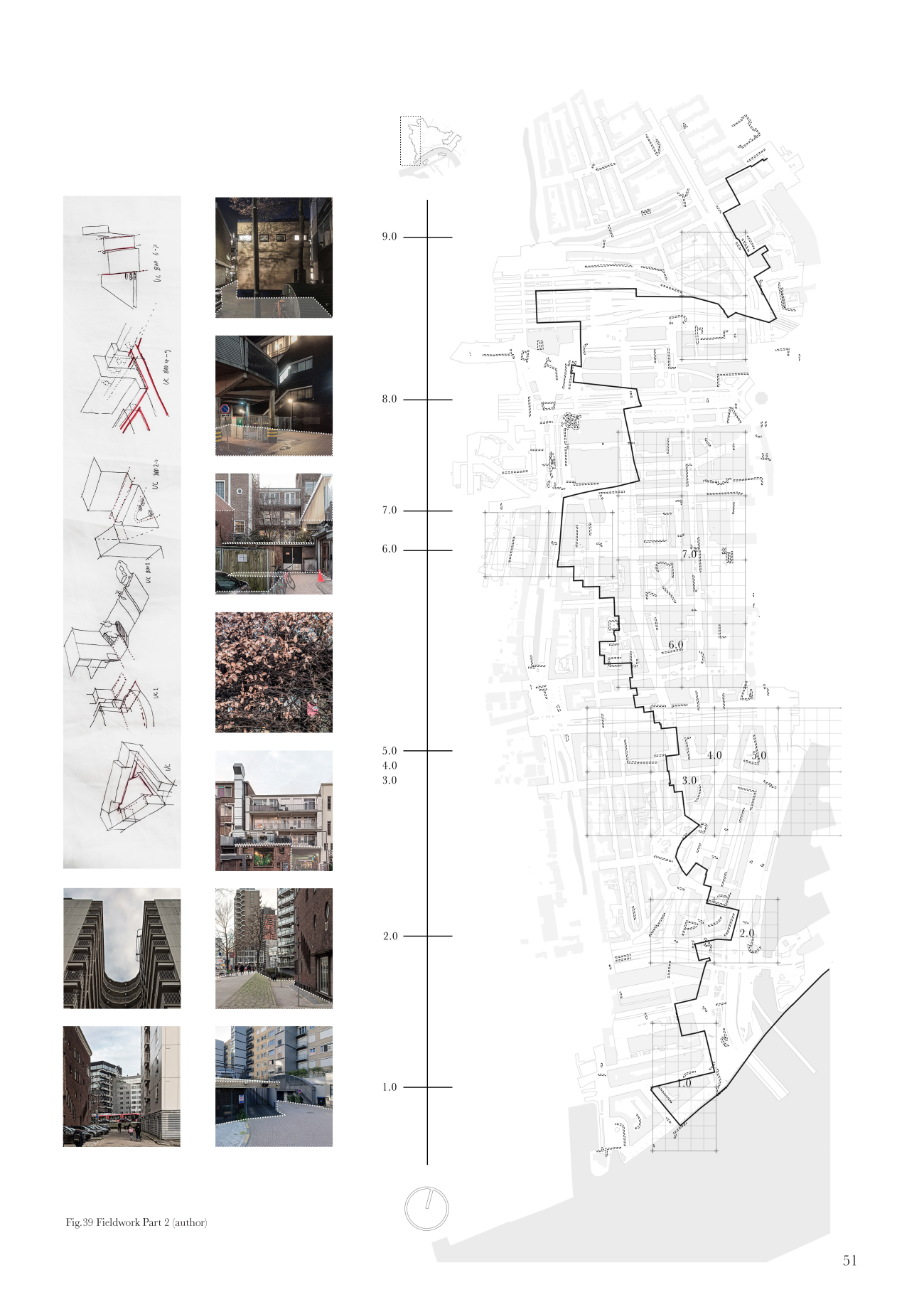

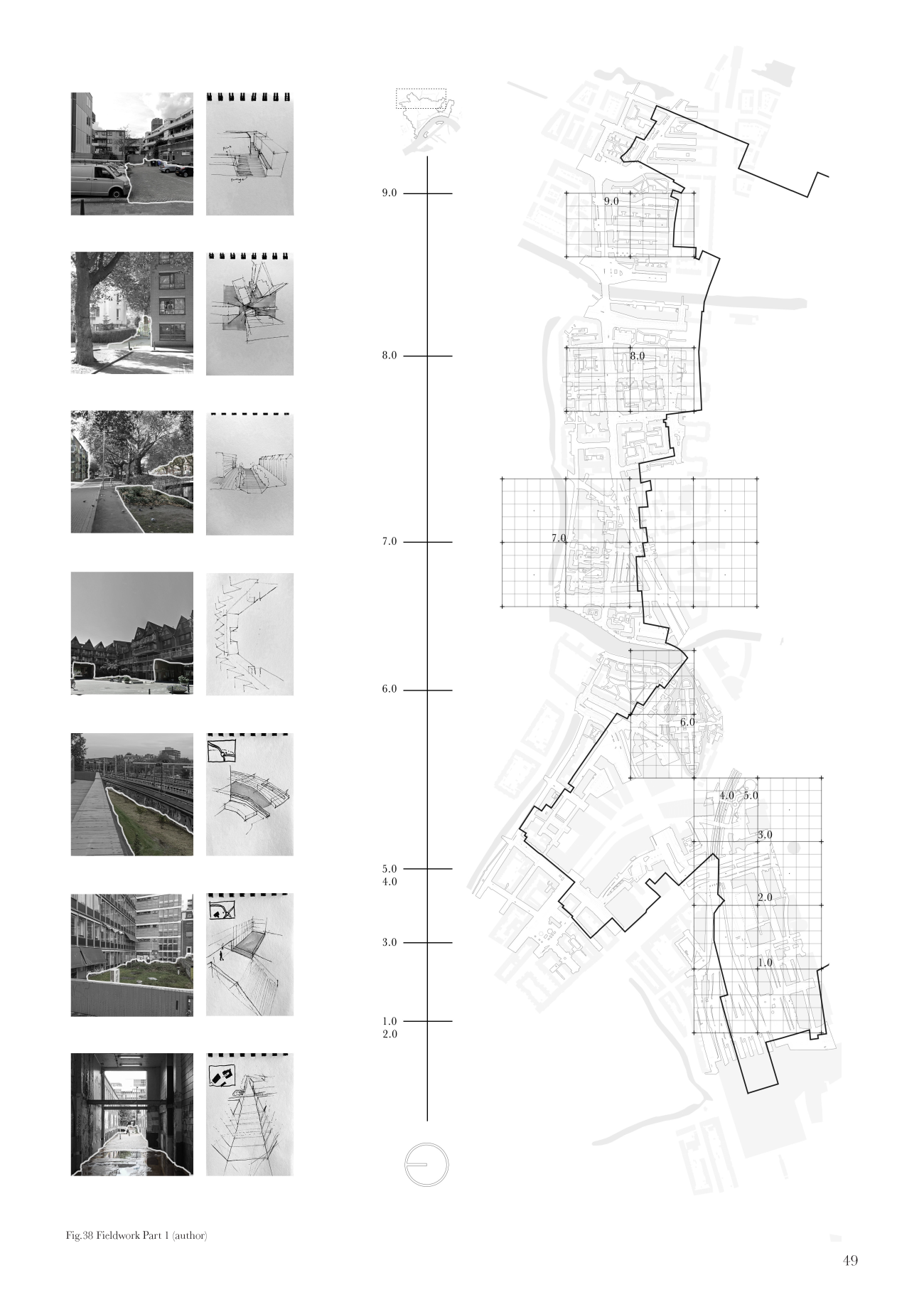

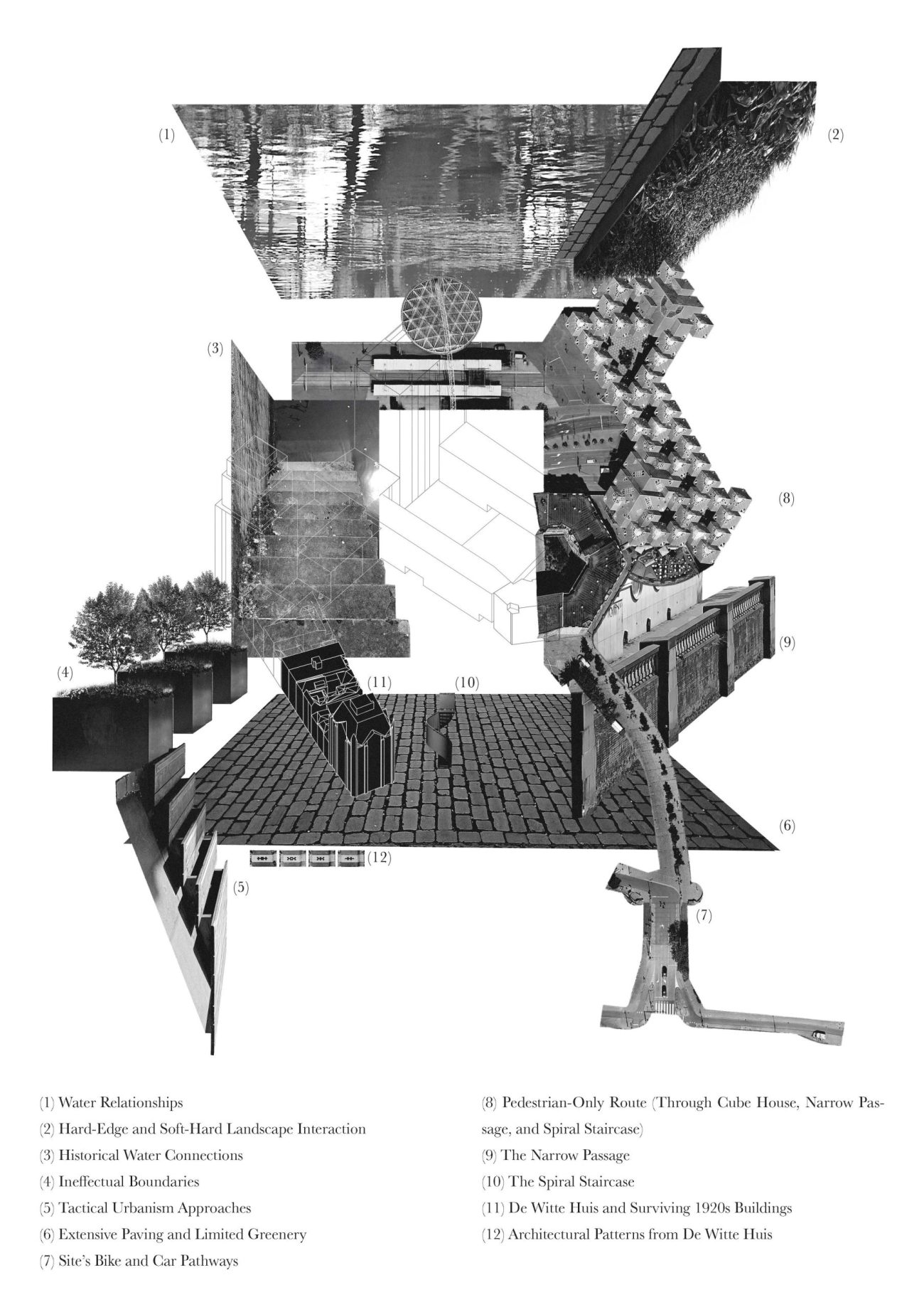

Fieldwork Collage Mapping Site-Specific Challenges and Opportunities for Urban Design
The “0th place” is a theoretical social space that resets place identity, evolving over time to adapt to various uses and foster encounters, challenging traditional concepts of the 1st place (home), 2nd place (work or school), and 3rd place (public gathering spaces).

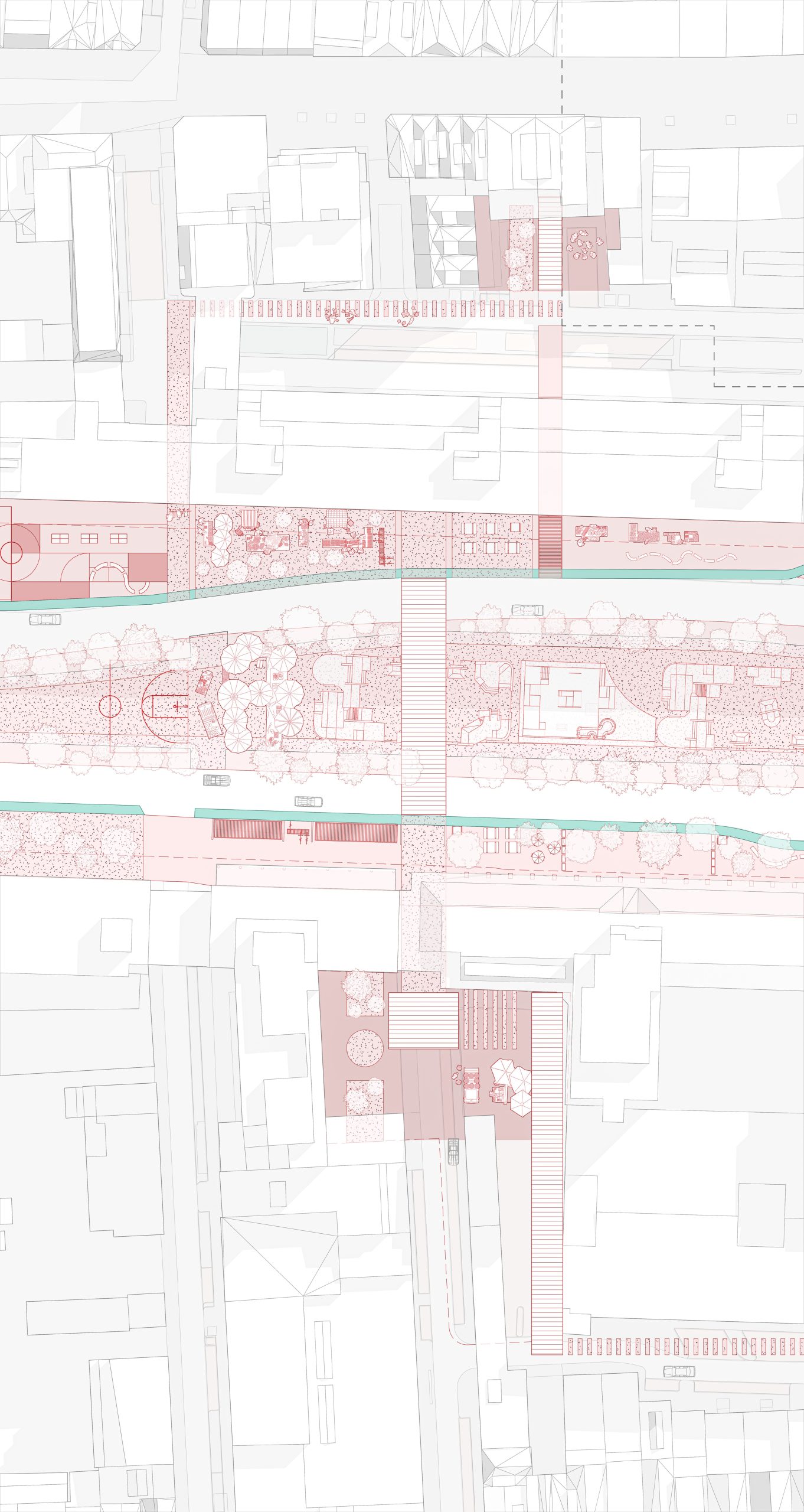

Final design plan

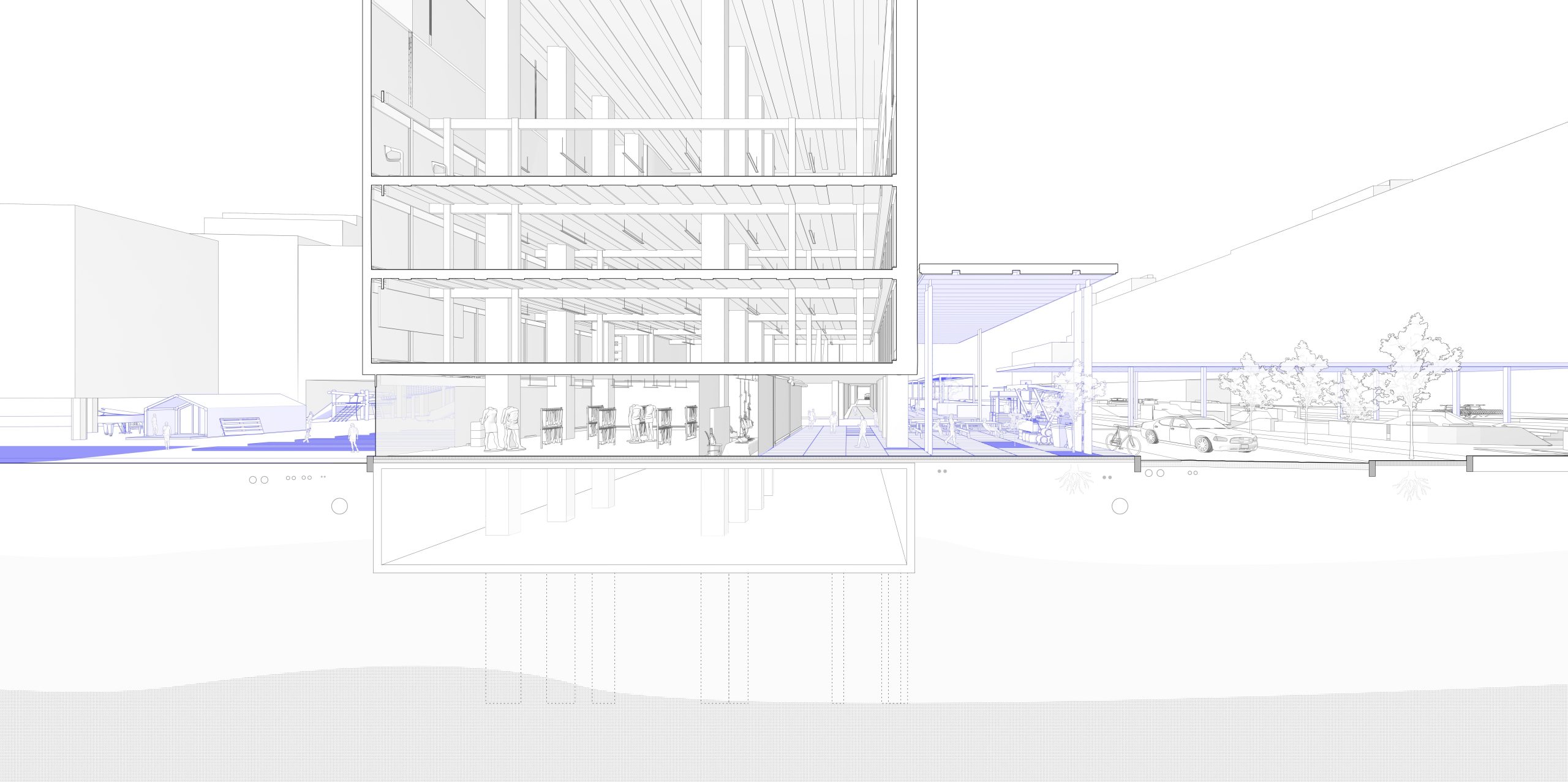

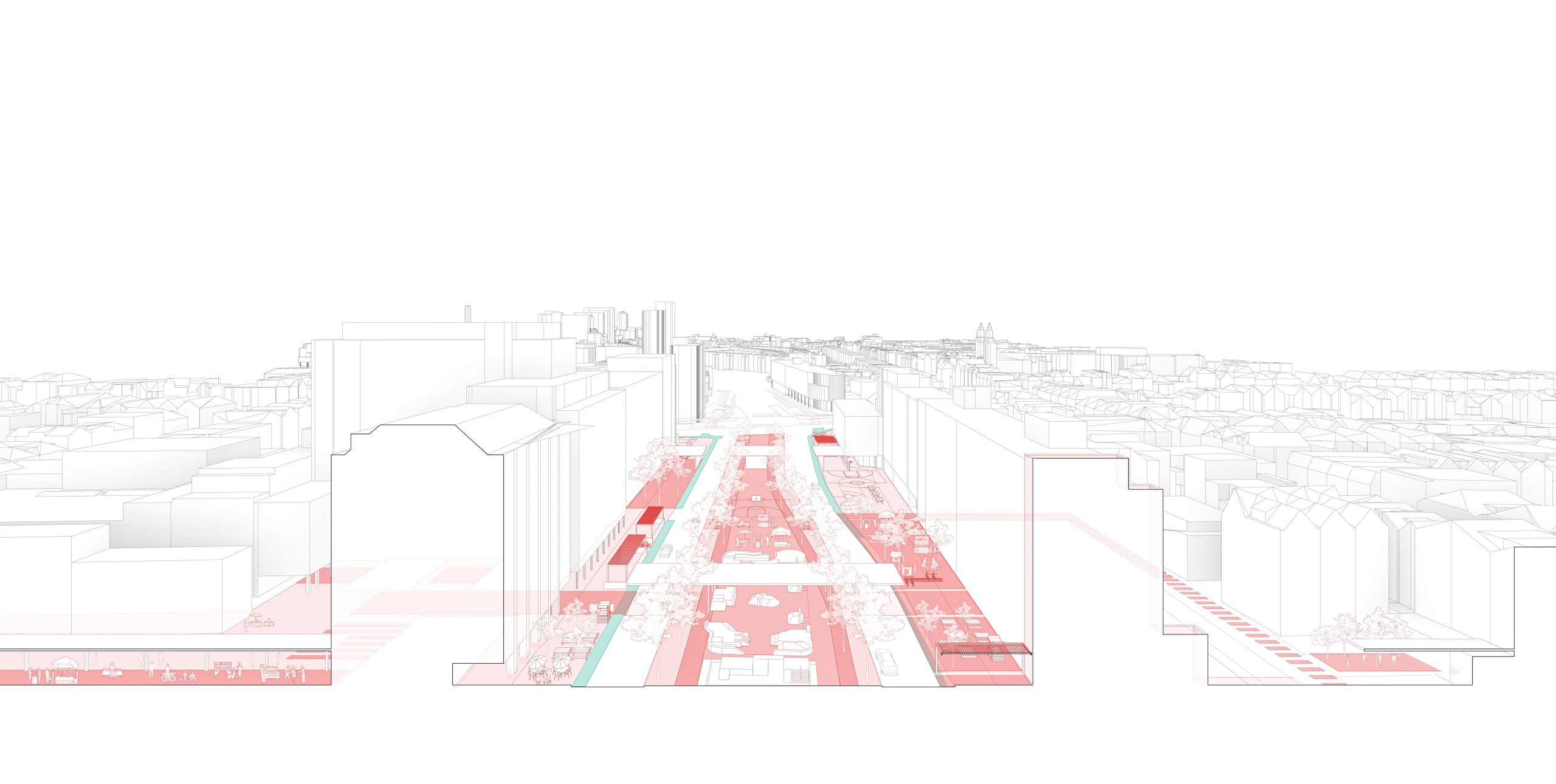

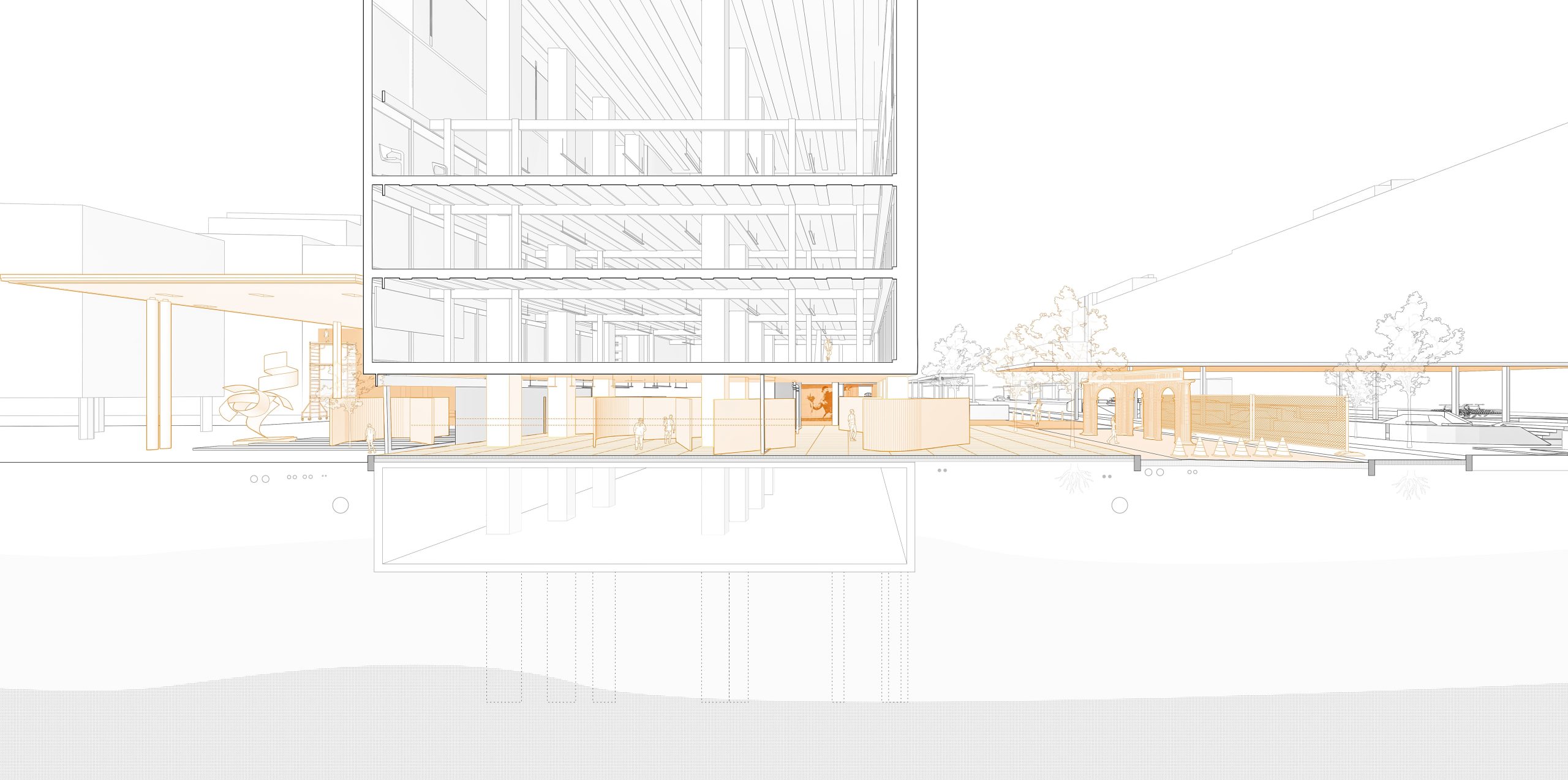

Final design section

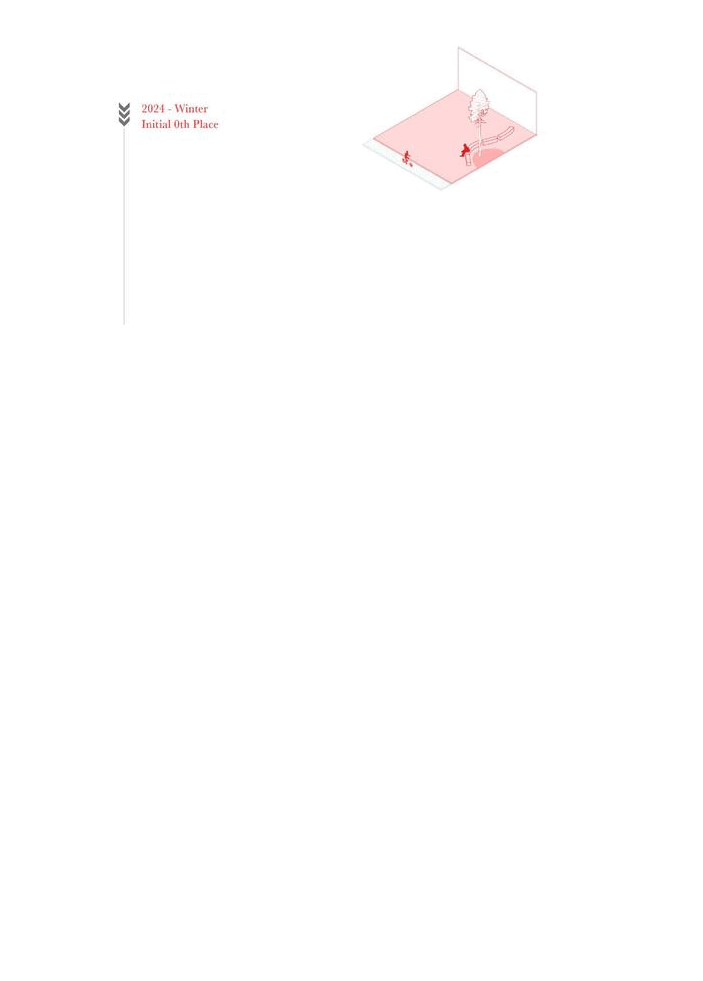

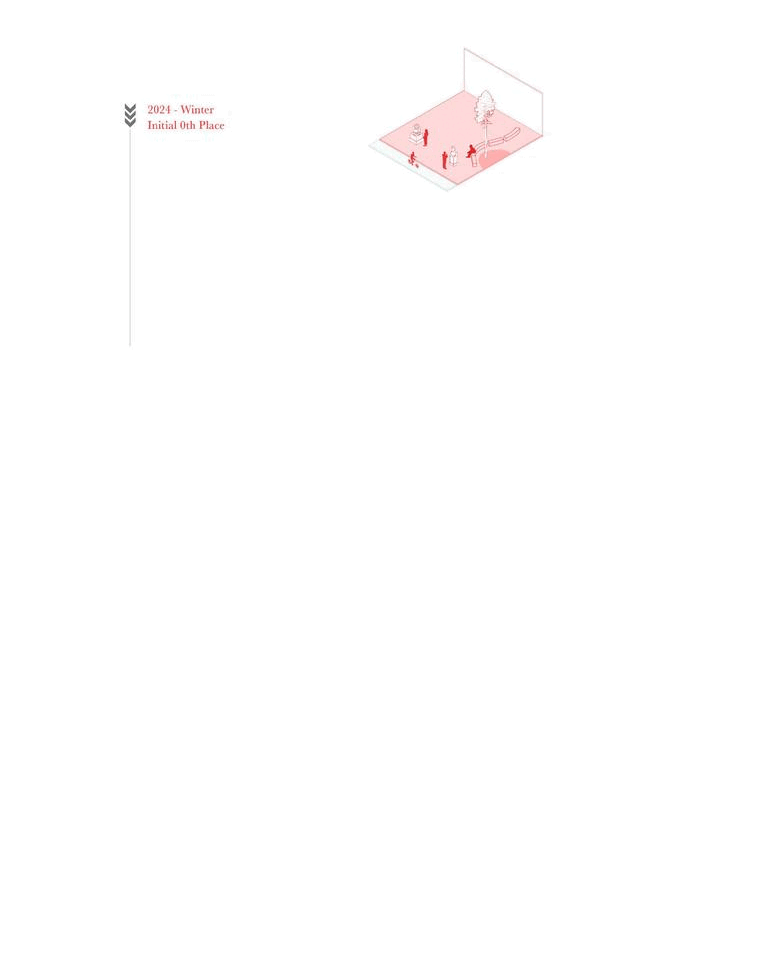

Exploring the dynamic evolution of urban spaces (initial 0th place) shaped by diverse community perspectives and activities.
Youth and Artists: Shaping Urban Spaces through Temporary Connectivity and Expression
Exploring the dynamic evolution of urban spaces (initial 0th place) shaped by diverse community perspectives and activities.
“Locals and Tourists: Evolving Urban Spaces through Temporary Functions and Community Engagement

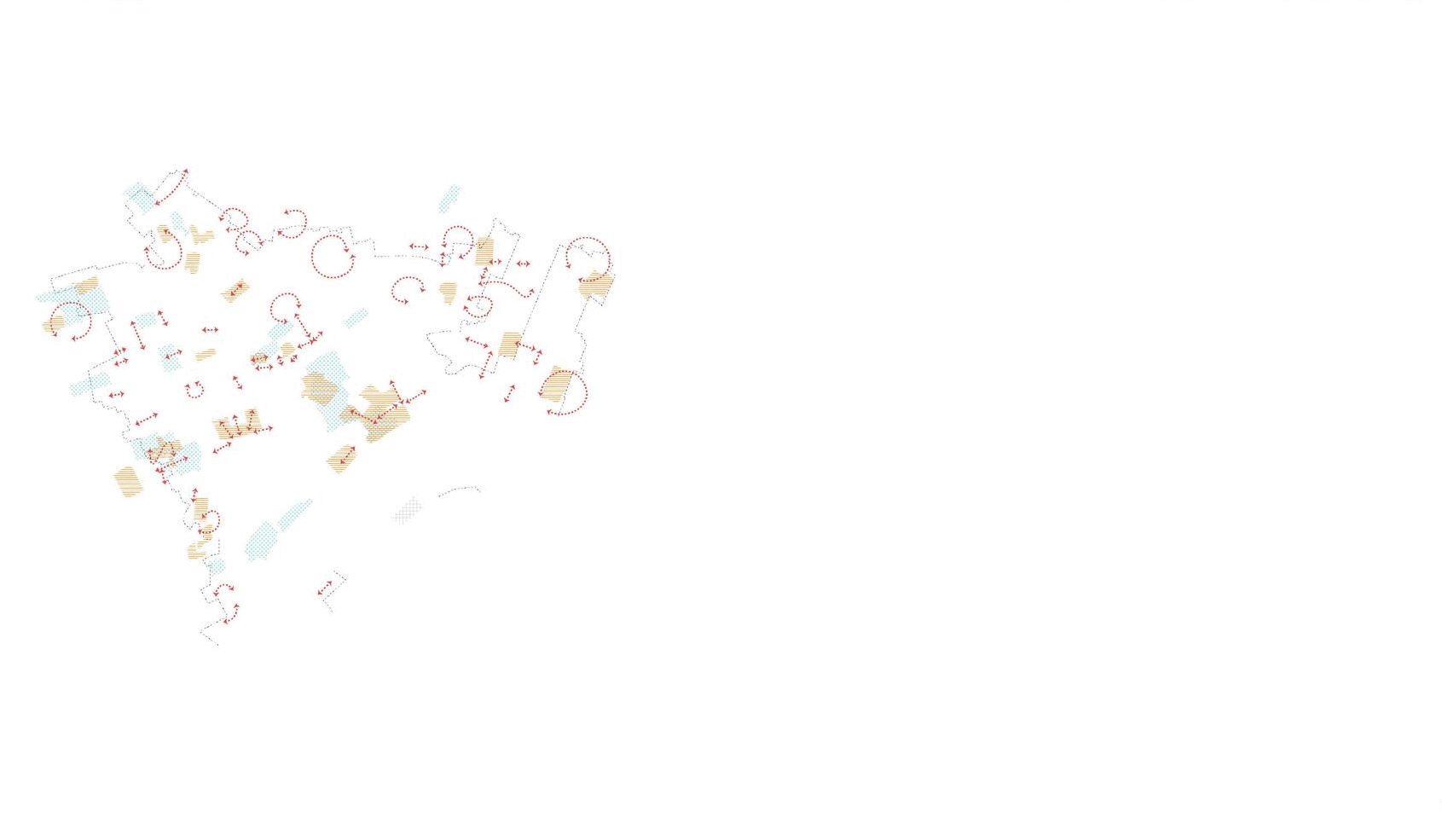

Scaling-Up Strategy: Leveraging Tactical and Infrastructural Interventions for City-Wide Scale Resilience
The scaling-up Strategy highlights 45 additional locations, unlocking 200,000 square meters for greenery, water storage, permeable surfaces, and community spaces.
Process maquette that facilitated the development and presentation of the scaled-up strategy.

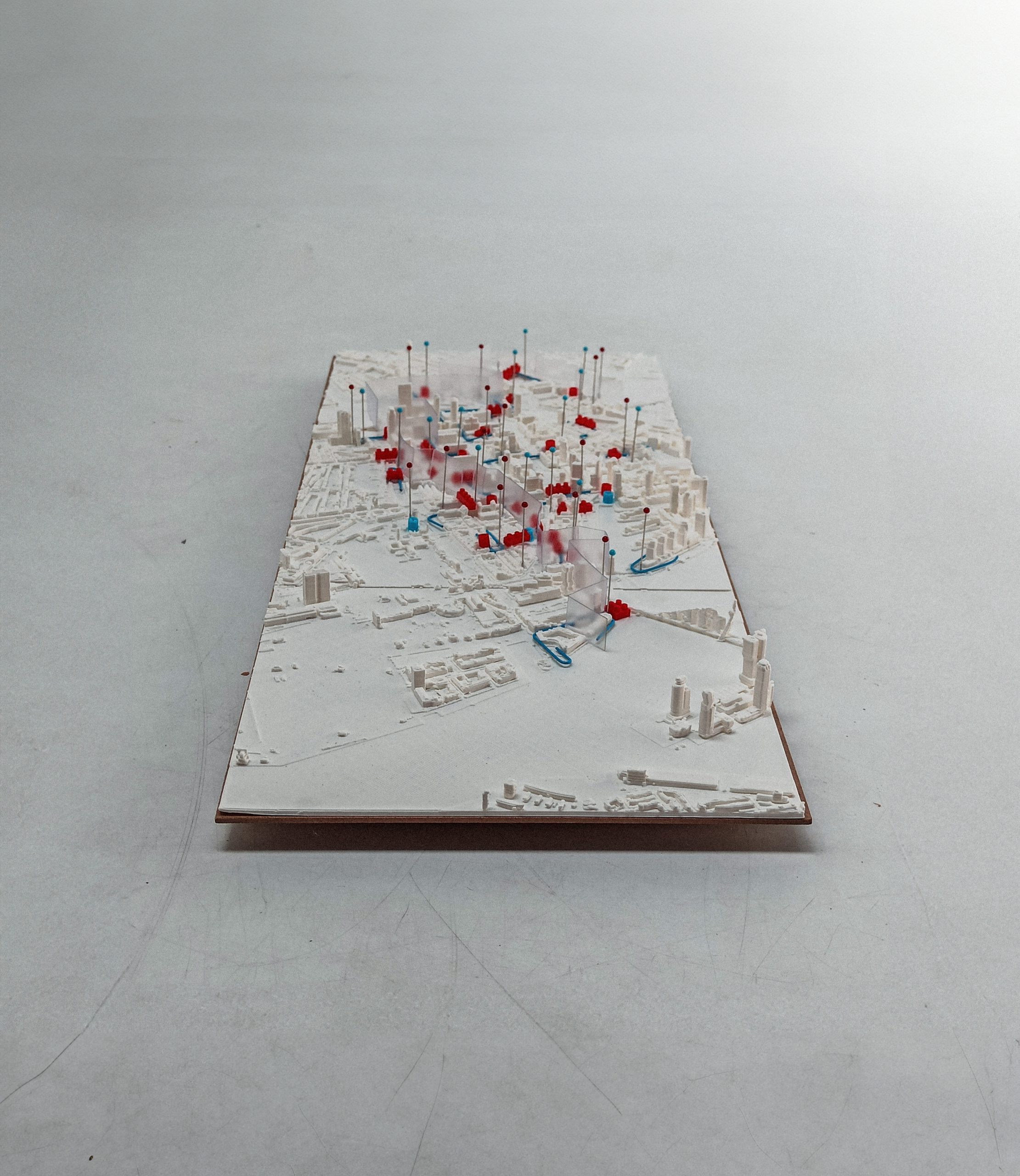

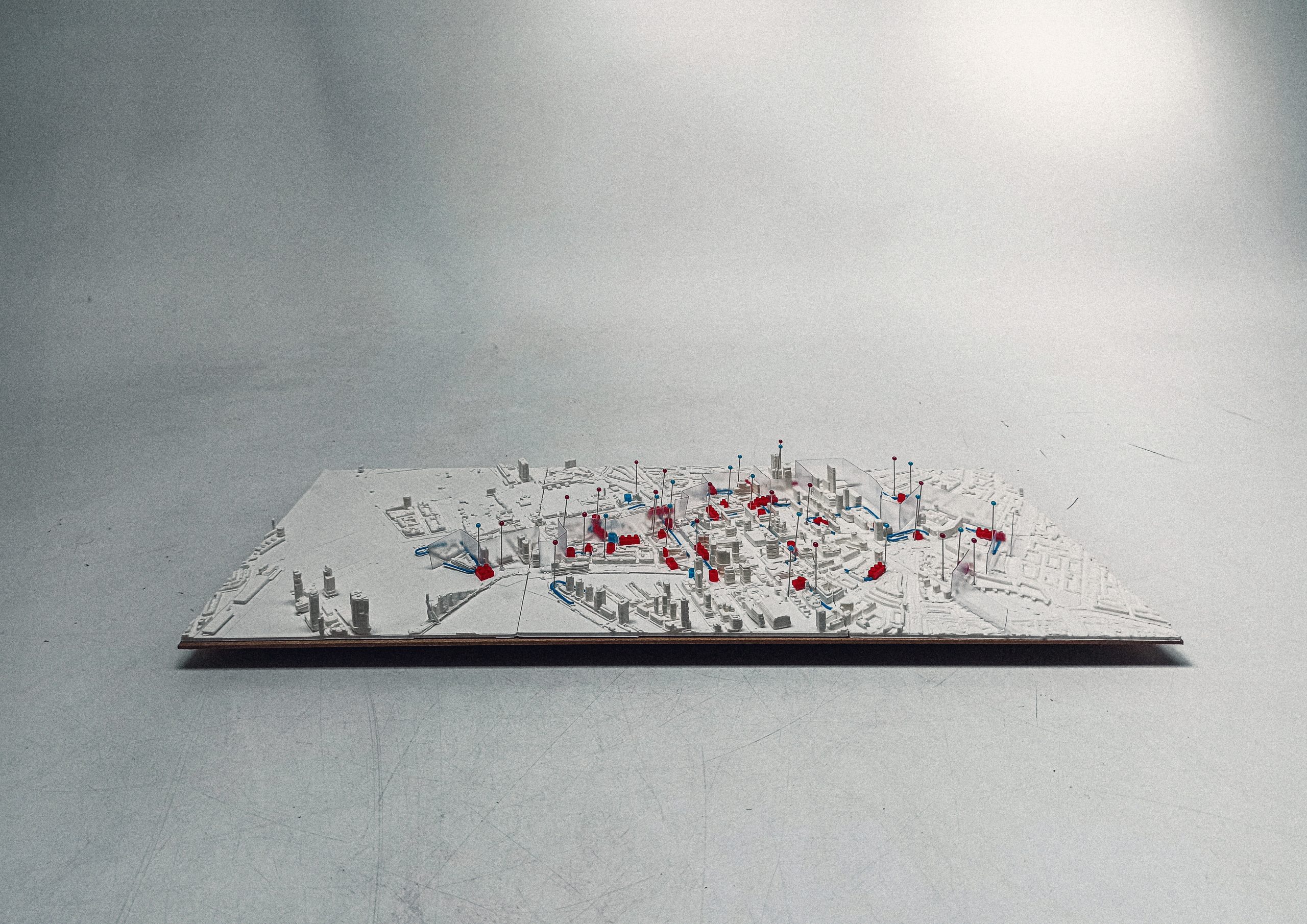

Scaled-Up Strategy Maquette, Rotterdam, De Brandgrens

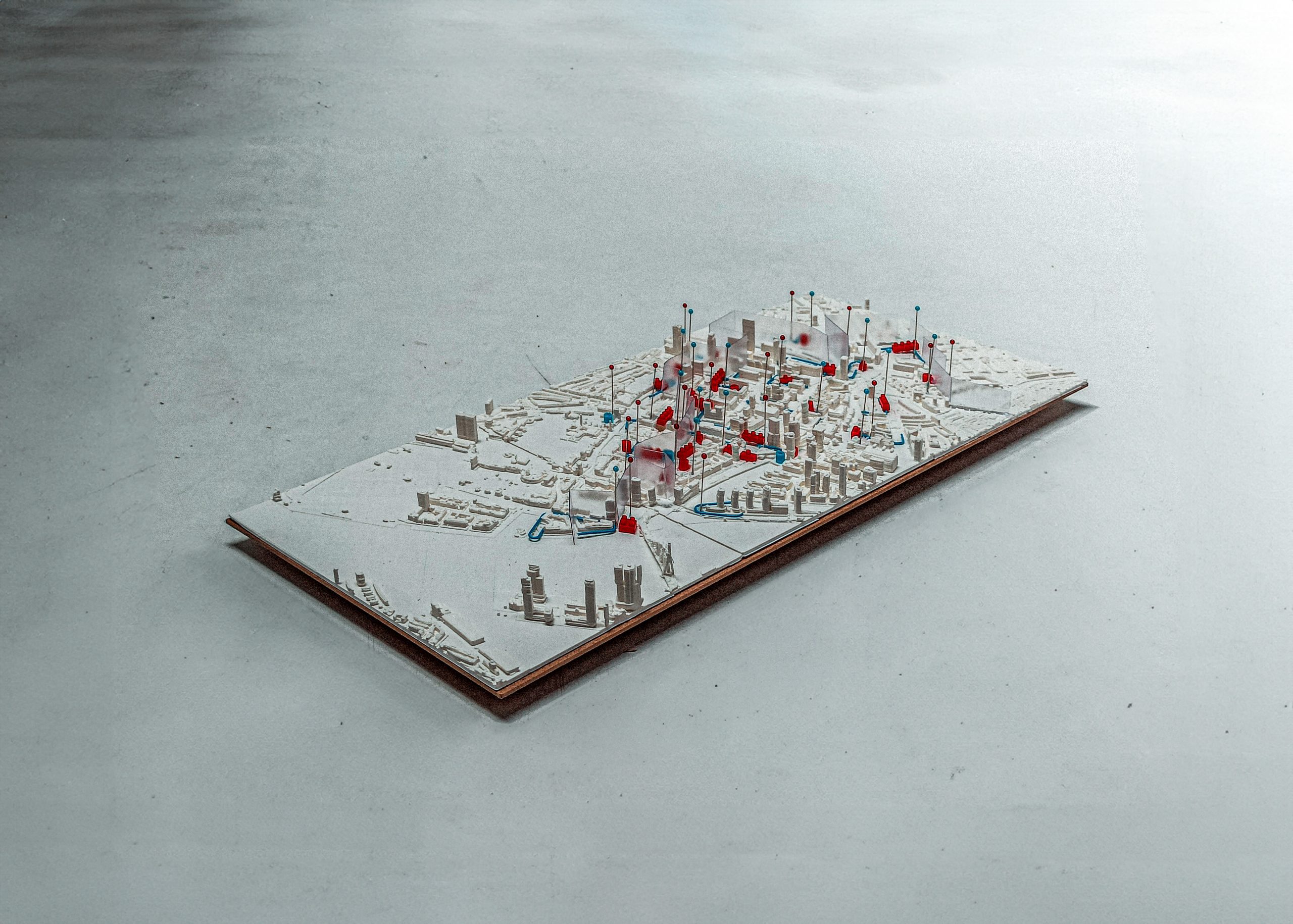

Scaled-Up Strategy Maquette, Rotterdam, De Brandgrens
The complete thesis is available on the TU Delft repository for further information.
